NiroSan® Stainless Steel
316 & 316(L) with Molibden inside
System description

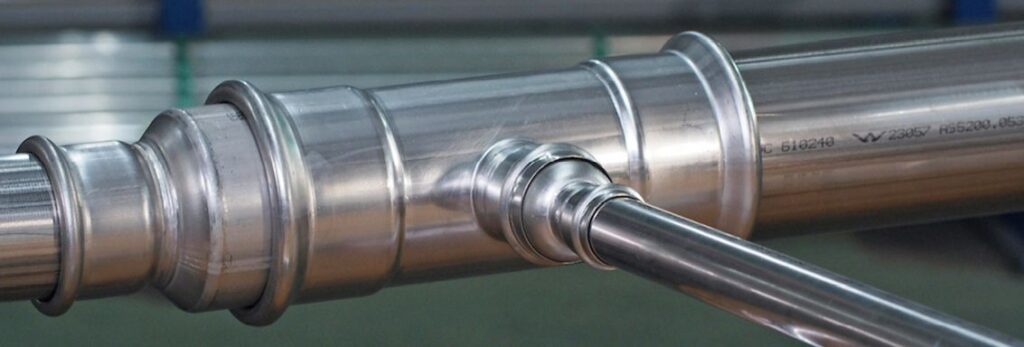

The piping system consists of premium NiroSan® stainless steel press fittings with an EPDM (ethylene propylene diene rubber) moulded sealing ring and NiroSan® stainless steel system pipes according to EN 10312. Please check also SANHA® web page for detailed information and certificates
Wide Range of Application
All NiroSan® press fittings are made from the premium stainless steel type 1.4404 / AISI 316L (for pressing components) and 1.4408 (for precision cast threaded stainless steel components). The material 1.4404 contains at least 2.3 % molybdenum, yet less carbon than the conventional type 1.4401. For this reason material no 1.4404/316L is a superior material with higher corrosion resistance than standard stainless steels.
Drinking water
Heating
Treated water
Rainwater
Compressed air (residual oil content max. 25 mg/m3 )
Fire extinguishing systems* (DIN 14462, wet)
Sprinklers* (VdS CEA 4001, wet)
Technical gases
Cooling water
Shipbuilding
Certified quality
The NiroSan® press system and its components are certified in accordance with the rules and regulations of all important national and international certification bodies such as DNV-GL, ABS, RINA, L’LOYDS REGISTER, WRAS, KIWA, DVGW and many more.
Silicone free version
All press fittings and pipes of this series are also available in a silicone free version with an EPDM O-ring (series 9000 SF). This is especially useful in industrial production which require silicone-free environments and media and ensures that no silicone is introduced by the piping system.
Operating conditions for the NiroSan® press system
| Water and aqueous solutions, Technical gases (non-toxic, non-flammable), d ≤ 168 mm | |
| Operating pressure | 16 bar |
| Operating temperature NiroSan® press fittings with EPDM sealing ring | -30 ° C – +120 ° C |
| Type of thread: R/Rp thread according to EN 10226, fastening thread: G thread according to ISO 228 | |
Exceptional flexibility
- All dimensions from 15 to 168 mm including 64 mm available
- Reliable, permanent connection with NiroSan® stainless steel system pipes:
- NiroSan® (1.4404/316L), EN 10088, TIG-welded, low carbon, high (≥ 2,3 %) molybdenum content for increased corrosion resistance. Labelled in black lettering.
- NiroSan® ECO (1.4404/316L), EN 10088, optimized wall thickness, TIG-welded, low carbon, high ( ≥ 2,3 %) molybdenum content for increased corrosion resistance.
- NiroSan®-F (1.4521/444), EN 10088, TIG-welded, pickled for improved corrosion resistance, nickle-free
- Thread according to EN 10226 and/or ISO7/1 Typ R und Rp
